Tarmoqli bantli konveyer
Suyuq kostyumlar konveyerini tavsiflash Atrof-muhitga chidamli uzluksiz transportlash uskunasi sifatida dumaloq naychali konveyer asosan ko'mir, ko'mir, koks, aralash materiallarni, sinterlangan ma'danlarni, mineral kukunlarni, neft koksini, ohaktoshni, qum-shag'al agregatlarini , ...

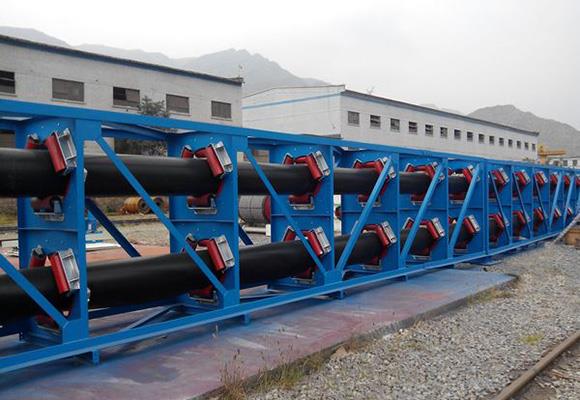

Tarmoqli bantli konveyer
Ta'rif
Atrof-muhitga chidamli uzluksiz transport vositasi sifatida dumaloq naychali bantli konveyer asosan ko'mir, ko'mir, koks, aralash materiallar, sinterlangan ma'dan, mineral kukun, neft koks, ohaktosh, qum-guruch agregati, asetilenli loy, namlik, chang, kimyoviy o'g'it, tuz, chiqindi qog'oz, fosforli gips, oltingugurt-temir cüruf va har xil turdagi materiallar. Dumaloq naychali bantli konveyer oddiy bantli konveyer bilan bir xil ish printsipiga ega; ya'ni konveyer bantini va uning materiallarini harakatlantirish uchun ishqalanishdan foydalaning. Komponentlarning ko'pchiligi odatiy bantli konveyer bilan keng tarqalgan bo'lib ishlatilishi mumkin, biroq konveyer tasmasi dumaloq trubka shaklida o'ralgan bo'lishi kerak.
Dairesel quvur konveyörü asoslari va tarkibi:
1. Umumiy tushirish porti
2. Zaryadlash porti
3. Materiallarni qabul qilish bo'limi
4. Maxsus quvurli lenta
5. Materiallarni tushirishning o'tish bo'limi
6. Transmisyon rolini
Konveyer tasmasi quyruq qismidagi o'tish qismidan olingan materiallarni qabul qilganda, konveyer tasmasi asta-sekin dumaloq trubka shaklida to'ldiriladi, keyinchalik materiallarni muhrlangan tarzda tashish uchun dumaloq trubka lentasi qo'llaniladi, buyumlar ashyoni bo'shatilgunga qadar buyumlar o'tish joyiga ko'chirilganda asta-sekin konveyer tasmasi ochiladi.
Xususiyatlari
1. Katta hajmdagi materiallarni muhrlash va tashish mumkin.
2. Bu transport vositalarini kosmik kemachilar bilan tartibga keltirishi mumkin.
3. Transportning burilish burchagini kuchaytirishi mumkin.
4. Kuzatuv hodisasi yo'q.
5. Ikkita yo'nalishda materiallarni tashish mumkin.
Shartnoma
Quvur diametri | Tarmoqning kengligi | Bandspeed (m / s) | |||||||
0.5 | 0.63 | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | ||
Φ100 | 360 | 10.6 | 13.4 | 17 | 21.2 | 26.5 | 33.9 | 42.4 | 53 |
PH150 | 550 | 23.9 | 30.1 | 38.2 | 47.7 | 59.6 | 76.3 | 95.4 | 119.3 |
PH200 | 730 | 42.4 | 53.4 | 67.9 | 84.8 | 106 | 135.7 | 169.6 | 212.1 |
PH250 | 910 | 66.3 | 83.5 | 106 | 132.5 | 165.7 | 212.1 | 265.1 | 331.3 |
PH300 | 1100 | 95.4 | 120.2 | 152.7 | 190.9 | 238.6 | 305.4 | 381.7 | 477.1 |
PH350 | 1280 | 129.9 | 163.7 | 207.8 | 259.8 | 324.7 | 415.6 | 519.5 | 649.4 |
Φ400 | 1460 | 169.6 | 213.8 | 271.4 | 339.3 | 424.1 | 542.9 | 678.6 | 848.2 |
PH450 | 1640 | 214.7 | 270.5 | 343.5 | 429.4 | 536.8 | 687.1 | 858.8 | 1073.5 |
PH500 | 1820 | 265.1 | 334 | 424.1 | 530.1 | 662.7 | 848.2 | 1060.3 | 1325.4 |
PH560 | 2050 yil | 332.5 | 419 | 532 | 665 | 831.3 | 1064 | 1330 | 1662.5 |
Φ600 | 2190 | 381.7 | 480.9 | 610.7 | 763.4 | 954.3 | 1221.5 | 1526.8 | 1908.5 |
PH630 | 2300 | 420.8 | 530.2 | 673.3 | 841.7 | 1052.1 | 1346.6 | 1683.3 | 2104.1 |
PH700 | 2550 | 519.5 | 654.6 | 831.3 | 1039.1 | 1298.9 | 1662.5 | 2078.2 | 2597.7 |
PH800 | 2900 | 678.6 | 855 | 1085.7 | 1357.2 | 1696.5 | 2171.5 | 2714.3 | 3392.9 |
PH850 | 3100 | 766.1 | 965.2 | 1225.7 | 1532.1 | 1915.1 | 2451.4 | 3064.2 | 3830.3 |
Quvur diametri (mm) | Tarmoqning kengligi | Bandspeed (m / s) | |||||||
3.15 | 3.55 | 4 | 4.5 | 5 | 5.6 | 6.3 | 7.1 | ||
Φ100 | 360 | 66.8 | 75.3 | 84.8 | 95.4 | 106 | 118.8 | 133.6 | 150.6 |
PH150 | 550 | 150.3 | 169.4 | 190.9 | 214.7 | 238.6 | 267.2 | 300.6 | 338.8 |
PH200 | 730 | 267.2 | 301.1 | 339.3 | 381.7 | 424.1 | 475 | 534.4 | 602.2 |
PH250 | 910 | 417.5 | 470.5 | 530.1 | 596.4 | 662.7 | 742.2 | 835 | 941 |
PH300 | 1100 | 610.2 | 677.5 | 763.4 | 858.8 | 954.3 | 1068.8 | 1202.4 | 1355 |
PH350 | 1280 | 818.3 | 922.2 | 1039.1 | 1169 | 1298.9 | 1454.7 | 1636.6 | 1844.4 |
Φ400 | 1460 | 1068.8 | 1204.5 | 1357.2 | 1526.8 | 1696.5 | 1900 yil | 2137.5 | 2409 |
PH450 | 1640 | 1352.7 | 1524.4 | 1717.7 | 1932.4 | 2147.1 | 2404.7 | 2705.3 | 3048,9 |
PH500 | 1820 | 1670 | 1882 | 2120.6 | 2385.6 | 2650.7 | 2968.8 | 3339,9 | 3764 |
PH560 | 2050 yil | 2094.8 | 2360.8 | 2660 | 2992.6 | 3325.1 | 3724.1 | 4189.6 | 4721.6 |
Φ600 | 2190 | 2404.7 | 2710.1 | 3053.6 | 3435.3 | 3817 | 4275.1 | 4809.5 | 5420.2 |
PH630 | 2300 | 2651.2 | 2987,9 | 3366.6 | 3787.5 | 4208.3 | 4713.3 | 5302.4 | 5975.8 |
PH700 | 2550 | 3273.1 | 3688.7 | 4156.3 | 4675.9 | 5195.4 | 5818.9 | 6546.2 | 7377.5 |
PH800 | 2900 | 4275.1 | 4817.9 | 5428.7 | 6107.3 | 6785.8 | 7600.1 | 8550.2 | 9635.9 |
PH850 | 3100 | 4826.2 | 5439 | 6128.5 | 6894.5 | 7660.6 | 8579,8 | 9652.3 | 10878 |
