16 tonnagacha bitta sig'imga ega bo'lgan teplovoz vagonlari - Yangiliklar

16 tonnagacha bitta qoziqli teplovoz vinosi

- May 03, 2018 -

Asosiy ma'lumot

Ismi: 16 tonnagacha bo'lgan yagona qoziqli teplovoz vinosi

Model raqami: LD

Olib tashlash balandligi: 20 m gacha

Vazifa Guruhi: A3-A5

Nazorat usuli: Pendent / Simsiz

Dastur: Qurilish foydalanish, dastgoh foydalanish, mineral maydoni foydalanish

Sling turi: simlar

Quvvat manbai: elektr

Ko'chirish turi: g'ildirak

O'rnatish: O'rnatilgan

Minora turi Kran turi: Tepaga ketadigan kran

Tashish paketi: yog'och qutisi

Xususiyatlari: Imkoniyatlar: 2-10T, oralig'i: 5-30M

Kelib chiqishi: Henan, Xitoy

Mahsulot tavsifi

1-qism: Ta'rif

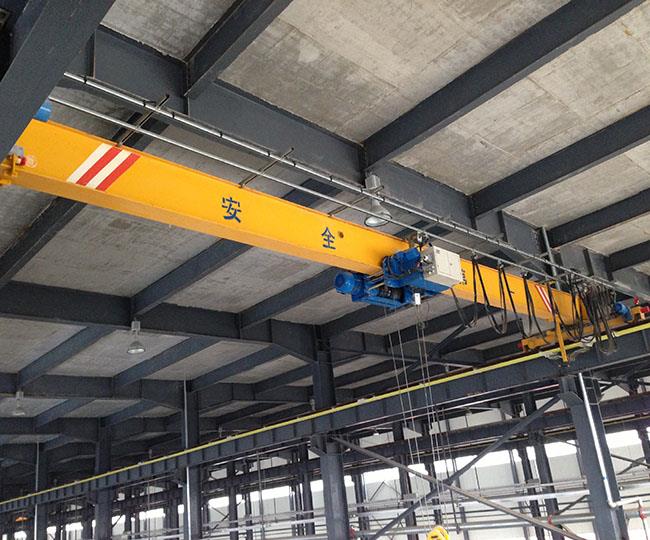

LD tipidagi yagona kiruvchi teplovoz kranlari odatda bitta kiruvchi qurilishdan iborat. Ular po'lat armatura yoki undan qattiq payvandlash qutisi kiruvchi turi bilan qurilishi mumkin. Yagona kontaktlarning zanglashiga olib chiqish kataklari 20T dan kam bo'lgan quvvatni ko'tarishda odatiy hisoblanadi. LD Single Girder Yuqori kranlar, sanoat sohasida keng tarqalgan bo'lib qo'llanilmoqda. Po'lat zavodida, gidroelektrostantsiya zavodida, omborxonada, dastgohda, ishlab chiqarish liniyasida, texnik xizmat ko'rsatish shoxobchasida, materiallarni tashishda, asbob-uskunalarni o'rnatish majmuasida va boshqalarda qo'llaniladi. Bizning talablarimizga mos keladigan keng qamrovli standart uskuna va aksessuarlarimiz mavjud.

2-qism: Batafsil konfiguratsiya:

1- tashlash mexanizmi
- Monorayral tel o'ralgan tovush yoki zanjirni ko'taruvchi vosita sifatida: - chaqqonlik tezligi: kerak bo'lganda bitta yoki ikkita
- Tramvay tezligi: Bitta yoki ikkita yoki undan kam qadam talab qilinadi
- Iqtisodiy narx bilan yuqori ishlash

2-Oxirgi aravalar
- Qo'rg'oshinli payvandlash qutisi turi
- Modulni loyihalash
- Sozlamali qafasli motorni yoki yumshoq start vositasini tanlov sifatida tanlang
- Yurish tezligi: Bitta yoki ikkita yoki bir qadam kam talab qilinadi

3-asosiy kiruvchi
- Kuchli payvandlangan quti Qisqichbaqasimon yoki mustahkam ichi bo'sh po'lat qism
- Modulni loyihalash
- Q235 yoki Q345 po'latdan tayyorlangan
- Belgilangan burilish ≤ 1/750 oralig'ida

4-nazorat
C-chizig'i bo'ylab mustaqil qarama-qarshi nazorat qilish
- parametr sifatida simsiz boshqaruv
- Tanlov sifatida idishni boshqarish

5-elektr qismi
-O'zgaruvchan quvvat manbai (variant sifatida)
- Boshqarish paneli IP54 yoki IP44 - ish muhitiga bog'liq.
- Komponentlar texnik jihatdan qulay tarzda joylashtirilgan va barcha tartib yaxshi himoya bilan ta'minlangan
- Galvanizli C-chizig'ida ishlaydigan simi aravalariga o'rnatilgan, simi arqonlari ustiga kesilgan svetoforlar to'xtatiladi.
- Schneider yoki Siemens brendidagi asosiy elektr qismi

6-rasm
- mexanik zarbani portlatish orqali zanglarni olib tashlash orqali korroziyani himoya qilish SA 2.5
- Birinchi qavatdagi epoksi 30 mikronli qatlam
- Epoksi 30 mikronli ikkinchi qatlam
- poliuretan 40 mikronli uchinchi qatlam
- O'rtacha qalinligi: taxminan 100 mikron
- Rang: sariq yoki sariq rangga talablar bo'yicha

7-Xavfsiz himoyalash
-Quvvat o'chirish tugmasi
Yuklab olishni himoyalash
- himoya qilish
- umumiy sayohat va uzoq safarlarni himoya qilish
- sayohatni himoya qilish
- Motorni himoya qilish

3-qism: Sketch va texnik ma'lumotlar

Imkoniyatlar (t)	span (m)	umumiy og'irligi (G)	maksimal g'ildirak yuk (kN)	min g'ildirak yuk (kN)	H1	H2	H3	V	B	C1	C2
1	7.5	1.67	8.9	3.9	490	910	550	2000 yil	2500	796	1274
	8	1.72	9.1	4.0
	8.5	1.77	9.2	4.1
	9	1.81	9.4	4.3
	9.5	1.86	9.5	4.4
	10	1.91	9.7	4.5
	10.5	1.96	9.8	4.6
	11	1.95	9.8	4.6
	11.5	2.00	10.0	4.7
	12	2.05	10.1	4.8
	12.5	2.09	10.2	4.9
	13	2.14	10.4	5.0
	13.5	2.19	10.5	5.2
	14	2.24	10.6	5.3
	14.5	2.43	11.1	5.8		955	595	2500	3000
	15	2.48	11.3	5.9
	15.5	2.53	11.4	6.0
	16	2.58	11.5	6.1
	16.5	2.63	11.7	6.3
	17	2.66	11.7	6.3
	17.5	2.85	12.2	6.8	530	970	650
	18	2.90	12.4	6.9
	18.5	2.96	12.5	7.1
	19	3.01	12.7	7.2
	19.5	3.02	12.7	7.2
	20	3.20	13.1	7.7	580		700	3000	3500
	20.5	3.26	13.3	7.8
	21	3.32	13.4	8.0
	21.5	3.37	13.6	8.1
	22	3.43	13.7	8.2
	22.5	3.49	13.9	8.4
	23	4.07	15.3	9.8	660	990	800	3500	4000
	23.5	4.13	15.5	10.0
	24	4.20	15.7	10.2
	24.5	4.26	15.8	10.3
	25	4.32	16.0	10.5
	25.5	4.39	16.2	10.6
	26	5.35	18.6	13.0	745	1010	900	4000	4500
	26.5	5.43	18.8	13.2
	27	5.52	19.0	13.5
	27.5	5.60	19.2	13.7
	28	5.68	19.4	13.9
	28.5	5.76	19.6	14.1
Imkoniyatlar (t)	span (m)	umumiy og'irligi (G)	maksimal g'ildirak yuk (kN)	min g'ildirak yuk (kN)	H1	H2	H3	V	B	C1	C2
2	7.5	1.79	13.8	4.1	490	1080	550	2000 yil	2500	871	1274
	8	1.84	14.0	4.2
	8.5	1.88	14.1	4.3
	9	1.93	14.3	4.4
	9.5	1.98	14.5	4.5
	10	2.03	14.7	4.6
	10.5	2.07	14.8	4.7
	11	2.12	15.0	4.8
	11.5	2.25	15.4	5.1		1125	595
	12	2.30	15.5	5.3
	12.5	2.35	15.7	5.4
	13	2.40	15.8	5.5
	13.5	2.45	16.0	5.6
	14	2.50	16.1	5.8
	14.5	2.62	16.5	6.1	580	1140	700	2500	3000
	15	2.68	16.6	6.2
	15.5	2.74	16.8	6.3
	16	2.79	17.0	6.5
	16.5	2.85	17.1	6.6
	17	2.91	17.3	6.8
	17.5	3.23	18.1	7.6	660	1160	800
	18	3.30	18.3	7.7
	18.5	3.36	18.5	7.9
	19	3.42	18.6	8.0
	19.5	3.49	18.8	8.2
	20	4.09	20.3	9.7	785	1135	900	3000	3500
	20.5	4.17	20.5	9.9
	21	4.24	20.7	10.1
	21.5	4.32	20.9	10.3
	22	4.40	21.1	10.5
	22.5	4.47	21.3	10.7
	23	5.31	23.4	12.7	820	1200	1000	3500	4000
	23.5	5.40	23.7	13.0
	24	5.49	23.9	13.2
	24.5	5.57	24.1	13.4
	25	5.66	24.3	13.6
	25.5	5.75	24.6	13.8
	26	6.40	26.2	15.5	875	1250	1100	4000	4500
	26.5	6.50	26.5	15.7
	27	6.60	26.7	16.0
	27.5	6.69	27.0	16.2
	28	6.79	27.2	16.4
	28.5	6.89	27.5	16.7
Imkoniyatlar (t)	span (m)	umumiy og'irligi (G)	maksimal g'ildirak yuk (kN)	min g'ildirak yuk (kN)	H1	H2	H3	V	B	C1	C2
3	7.5	1.93	18.9	4.2	530	1255	650	2000 yil	2500	818.5	1291
	8	1.98	19.1	4.3
	8.5	2.03	19.4	4.4
	9	2.09	19.6	4.5
	9.5	2.14	19.8	4.7
	10	2.20	20.0	4.8
	10.5	2.25	20.2	4.9
	11	2.31	20.4	5.0
	11.5	2.41	20.7	5.3	580		700
	12	2.47	20.9	5.4
	12.5	2.53	21.1	5.6
	13	2.59	21.3	5.7
	13.5	2.64	21.5	5.9
	14	2.70	21.7	6.0
	14.5	3.02	22.5	6.8	660	1275	800	2500	3000
	15	3.08	22.7	6.9
	15.5	3.14	22.9	7.1
	16	3.21	23.1	7.2
	16.5	3.27	23.2	7.4
	17	3.34	23.4	7.6
	17.5	3.84	24.7	8.8	745	1290	900
	18	3.91	24.9	9.0
	18.5	3.99	25.1	9.2
	19	4.06	25.3	9.4
	19.5	4.14	25.5	9.6
	20	4.92	27.5	11.5	820	1315	1100	3000	3500
	20.5	5.01	27.7	11.7
	21	5.09	28.0	11.9
	21.5	5.18	28.2	12.2
	22	5.27	28.4	12.4
	22.5	5.36	28.7	12.6
	23	5.71	29.6	13.5	875	1360		3500	4000
	23.5	5.80	29.8	13.7
	24	5.89	30.0	13.9
	24.5	5.99	30.3	14.2
	25	6.08	30.5	14.4
	25.5	6.17	30.8	14.6
	26	7.97	35.3	19.1	925	1660	1200	4000	4500
	26.5	8.09	35.6	19.4
	27	8.22	35.9	19.7
	27.5	8.34	36.2	20.0
	28	8.46	36.6	20.3
	28.5	8.59	36.9	20.7
Imkoniyatlar (t)	span (m)	umumiy og'irligi (G)	maksimal g'ildirak yuk (kN)	min g'ildirak yuk (kN)	H1	H2	H3	V	B	C1	C2
5	7.5	2.20	28.7	4.6	580	1460	720	2000 yil	2500	841.5	1310
	8	2.27	29.0	4.7
	8.5	2.33	29.3	4.9
	9	2.40	29.7	5.0
	9.5	2.46	30.0	5.2
	10	2.53	30.2	5.3
	10.5	2.59	30.5	5.5
	11	2.66	30.8	5.6
	11.5	2.91	31.5	6.3	660		800
	12	2.98	31.8	6.4
	12.5	3.05	32.0	6.6
	13	3.12	32.3	6.8
	13.5	3.20	32.5	6.9
	14	3.27	32.8	7.1
	14.5	3.52	33.5	7.7	745	1540	900	2500	3000
	15	3.60	33.7	7.9
	15.5	3.68	33.9	8.1
	16	3.75	34.2	8.3
	16.5	3.83	34.4	8.5
	17	3.90	34.6	8.7
	17.5	4.41	35.9	9.9	820	1500	1000
	18	4.50	36.2	10.2
	18.5	4.59	36.5	10.4
	19	4.68	36.7	10.6
	19.5	4.76	37.0	10.8
	20	5.23	38.2	12.0	875	1545	1100	3000	3500
	20.5	5.33	38.4	12.2
	21	5.42	38.7	12.4
	21.5	5.51	38.9	12.7
	22	5.60	39.2	12.9
	22.5	5.70	39.5	13.1
	23	7.08	42.9	16.6	925	1595	1200	3500	4000
	23.5	7.20	43.2	16.9
	24	7.32	43.6	17.2
	24.5	7.43	43.9	17.4
	25	7.55	44.2	17.7
	25.5	7.67	44.5	18.0
	26	9.01	47.9	21.4	1015	1670	1300	4000	4500
	26.5	9.16	48.3	21.7
	27	9.30	48.6	22.1
	27.5	9.44	49.0	22.5
	28	9.58	49.4	22.8
	28.5	9.72	49.7	23.2
Imkoniyatlar (t)	span (m)	umumiy og'irligi (G)	maksimal g'ildirak yuk (kN)	min g'ildirak yuk (kN)	H1	H2	H3	V	B	C1	C2
10	7.5	3.26	51.3	6.1	720	1850	900	2000 yil	2500	1293	1893 yil
	8	3.34	52.1	6.3
	8.5	3.43	52.9	6.5
	9	3.51	53.5	6.6
	9.5	3.59	54.2	6.8
	10	3.67	54.8	7.0
	10.5	3.76	55.3	7.2
	11	3.84	55.8	7.3
	11.5	4.05	56.6	7.9	820	1850	1000
	12	4.14	57.1	8.1
	12.5	4.22	57.6	8.3
	13	4.31	58.0	8.5
	13.5	4.40	58.4	8.7
	14	4.49	58.8	8.9
	14.5	4.80	59.8	9.6	875	1900 yil	1100	2500	3000
	15	4.89	60.2	9.8
	15.5	4.98	60.6	10.1
	16	5.07	60.9	10.3
	16.5	5.17	61.3	10.5
	17	5.26	61.7	10.7
	17.5	5.53	62.5	11.4		1940	1140
	18	5.63	62.8	11.6
	18.5	5.73	63.2	11.9
	19	5.83	63.5	12.1
	19.5	5.92	63.9	12.3
	20	6.89	66.4	14.8	925	2000 yil	1250	3000	3500
	20.5	7.01	66.8	15.0
	21	7.12	67.1	15.3
	21.5	7.24	67.5	15.6
	22	7.36	67.9	15.9
	22.5	7.48	68.2	16.2
	23	8.96	72	19.9	1100	1920 yil	1350	3500	4000
	23.5	9.11	72.5	20.3
	24	9.26	72.9	20.6
	24.5	9.41	73.3	21.0
	25	9.56	73.8	21.4
	25.5	9.71	74.2	21.7
	26	13.09	82.7	30.2	1200		1450	4000	4700
	26.5	13.29	83.3	30.7
	27	13.48	83.8	31.2
	27.5	13.67	84.3	31.6
	28	13.86	84.8	32.1
	28.5	14.05	85.4	32.6
Imkoniyatlar (t)	span (m)	umumiy og'irligi (G)	maksimal g'ildirak yuk (kN)	min g'ildirak yuk (kN)	H1	H2	H3	V	B	C1	C2
16	7.5	3.64	77.2	7.0	820	2480	1000	2000 yil	2500	1293	1893 yil
	8	3.74	78.3	7.2
	8.5	3.84	79.4	7.4
	9	3.94	80.4	7.6
	9.5	4.04	81.3	7.9
	10	4.14	82.1	8.1
	10.5	4.24	82.9	8.3
	11	4.34	83.6	8.5
	11.5	4.55	84.6	9.0	875	2525	1100
	12	4.66	85.2	9.3
	12.5	4.76	85.9	9.5
	13	4.87	86.5	9.8
	13.5	4.97	87.1	10.0
	14	5.08	87.6	10.3
	14.5	5.93	90.0	12.4	975		1200	2500	3000
	15	6.06	90.6	12.7
	15.5	6.18	91.1	13.0
	16	6.31	91.7	13.3
	16.5	6.43	92.2	13.6
	17	6.56	92.7	13.9
	17.5	7.19	94.5	15.5	1075		1300
	18	7.33	95.0	15.8
	18.5	7.47	95.5	16.1
	19	7.61	96.0	16.5
	19.5	7.75	96.5	16.8
	20	8.56	98.7	18.9	1130	2570	1400	3000	3500
	20.5	8.72	99.2	19.2
	21	8.87	99.7	19.6
	21.5	9.03	100.2	20.0
	22	9.18	100.8	20.4
	22.5	9.34	101.3	20.8
	23	12.41	109.0	28.4	1280		1550	3500	4000
	23.5	12.61	109.6	28.9
	24	12.81	110.2	29.4
	24.5	13.02	110.9	30.0
	25	13.22	111.5	30.5
	25.5	13.43	112.0	31.0
	26	14.34	114.4	33.2	1300	2600	1600	4000	4700
	26.5	14.55	115.0	33.8
	27	14.77	115.6	34.3
	27.5	14.98	116.3	34.8
	28	15.20	116.9	35.4
	28.5	15.42	117.5	35.9
Imkoniyatlar (t)	span (m)	umumiy og'irligi (G)	maksimal g'ildirak yuk (kN)	min g'ildirak yuk (kN)	H1	H2	H3	V	B	C1	C2
20	7.5	5.45	97.9	10.2	900	2450	1050	2000 yil	2700	1394	1933 yil
	8	5.58	99.5	10.5
	8.5	5.70	101.0	10.7
	9	5.83	102.3	11.0
	9.5	5.96	103.5	11.3
	10	6.09	104.6	11.6
	10.5	6.22	105.7	11.8
	11	6.35	106.6	12.1
	11.5	6.99	108.8	13.7	970	2480	1150
	12	7.15	109.8	14.0
	12.5	7.30	110.7	14.4
	13	7.45	111.5	14.7
	13.5	7.60	112.3	15.1
	14	7.76	113.1	15.5
	14.5	8.67	115.8	17.7	1050	2530	1280	2500	3200
	15	8.85	116.6	18.1
	15.5	9.02	117.3	18.6
	16	9.20	118.1	19.0
	16.5	9.37	118.8	19.4
	17	9.55	119.5	19.8
	17.5	10.50	122.2	22.2	1130	2560	1390
	18	10.70	122.9	22.7
	18.5	10.89	123.6	23.1
	19	11.09	124.3	23.6
	19.5	11.28	125.0	24.1
	20	12.02	127.0	25.9	1200	2600	1500	3000	3700
	20.5	12.23	127.7	26.4
	21	12.44	128.4	26.9
	21.5	12.64	129.1	27.4
	22	12.85	129.8	27.9
	22.5	12.96	130.5	28.5
	23	13.88	132.7	30.5	1300		1600	3500	4200
	23.5	14.10	133.4	31.0
	24	14.31	134.0	31.6
	24.5	14.52	134.78	32.1
	25	14.74	135.4	32.6
	25.5	14.96	135.6	33.1
